| Dimensions | |
|---|---|
| Height | 400 mm |
| Length | 512 mm |
| Width | 255 mm |
| Input Voltage | |
| Frequency | 50 Hz |
| Phase | 3 |
| Voltage | 400 ±15% V |
| Power Specifications | |
| Current Range(A) | 60-400 A |
| Efficiency at Maximum Current | 85% |
| Open Circuit Voltage | 74 V |
| Power Factor at Maximum Current | 0.9 |
| Weight | |
| Weight | 24.5 kg |
| Welding Output | |
| Duty Cycle | 100% |
| Output Current | 310 A |
| Duty Cycle | 60% |
| Output Current | 400 A |

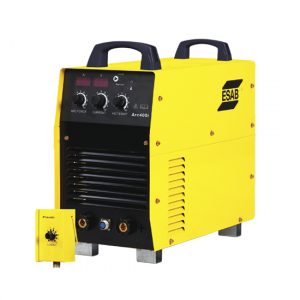

ARC 400I
Arc 400i is an IGBT based inverter controlled power source designed for MMA welding. The power source is designed as a compact power source for easy portability.
Features
- Inverter controlled – efficient power usage
- Light weight – for improved portability
- Wide mains voltage tolerance – for stable welding controls
- Protection against Over-Temperature, Under-Voltage, Over-Voltage and Single-phasing
- User friendly controls – Adjustable Arc force and Hot start
