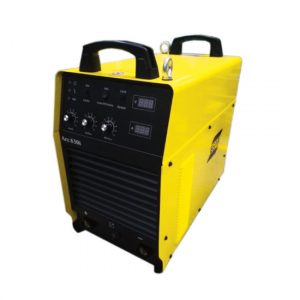

ARC 630I

Arc630i is heavy duty IGBT based inverter power source suitable for MMA welding, AirCarbonArcGouging(A-CAG), Scratch TIG and designed for 24×7 usage.

Stable performance with long leads in MMA with E6013 and E7018 electrodes
Wide operating window: 20 to 630A
Wide mains voltage tolerance: 400V – 15%..+20%
User-friendly controls: Adjustable arc force & hot start in MMA mode and process selection switch for MMA / Scratch TIG
In-built protections: overcurrent, thermal overload, overvoltage, under voltage.

Dimensions
Height	624 mm
Length	650 mm
Width	355 mm
Input Voltage
Frequency	50 / 60 Hz
Phase	3
Voltage	400 V
Power Specifications
Enclosure Class	IP21
Max Welding Output	613 A
Open Circuit VAC Low	<16 VAC
Open Circuit VDC High	85 VDC
Current Range(A)	20 – 630 A
Efficiency at Maximum Current	85%
Max Output (A)	630 A
Open Circuit Voltage	85 V
Phase	3
Power Factor at Maximum Current	0.93
Voltage Tolerance	+20% -15 % V
Specifications
Application Classification	S
Standards	IEC 60974-1, IEC 60974 -10
Weight
Weight	59 kg
Welding Output
Duty Cycle	100%
Output Current	488 A
Duty Cycle	60%
Output Current	630 A
