| Dimensions | ||
|---|---|---|
| Height | 850 mm | |
| Length | 675 mm | |
| Width | 455 mm | |
| Input Voltage | ||
| Model | K600 | |
| Frequency | 50 Hz | |
| Phase | 3 | |
| Voltage | 415 ±10% V | |
| Power Specifications | ||
| Current Range(A) | 60-600 A | |
| Voltage Range (V) | 16-44 V | |
| Weight | ||
| Wire Feeder | ||
| Weight | 9 kg | |
| Power Source | ||
| Weight | 160 kg | |
| Welding Output | ||
| Model | K600 | |
| Duty Cycle | 100% | 60% |
| Output Current | 470 A | 600 A |
| Wire Feeder Specifications | ||
| Wire Diameter | 0.8 – 1.6 mm | |
| Wire Feed Speed | 01 – 16 m/min | |

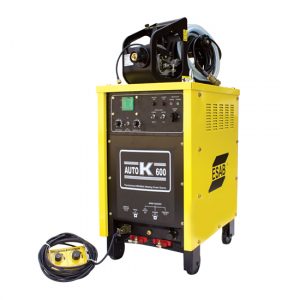

AUTO K 600
Auto K 600 is a thyristorised MIG/ MAG power source designed for heavy duty applications. The rugged design wire-feeder is best suited to withstand tough and dusty working conditions. Its excellent arc stability and smooth welding in a range of materials, thicknesses and applications makes it the preferred choice of customers.
Features
- Energy Efficient – Power Factor 0.9
- User Friendly Controls – Digital Ammeter and Voltmeter
- Protection – Thermal, Single Phasing, Control Circuits & Over-Amperage
- Excellent Weld characteristics for Reduced Re-work
Technical Specifications
Standard Accessories: Power Source, Wire Feeder, 3M Mig Torch, Co2 Regulator & Heater
