| Dimensions | ||
|---|---|---|
| Model | Buddy Arc 400i | |
| Height | 510 mm | |
| Length | 540 mm | |
| Width | 280 mm | |
| Model | Buddy Arc 400i XC | |
| Height | 510 mm | |
| Length | 540 mm | |
| Width | 280 mm | |
| Input Voltage | ||
| Model | Buddy Arc 400i | Buddy Arc 400i XC |
| Frequency | 50 Hz | 50 Hz |
| Voltage | 400 V | 400 V |
| Power Specifications | ||
| Model | Buddy Arc 400i | Buddy Arc 400i XC |
| Open Circuit Voltage | 68 VAC | 78 VAC |
| Power Factor at Maximum Current | 0.93 | 0.93 |
| Specifications | ||
| MCableX | 4 x 4 | |
| MCableX | 4C x 4 | |
| Weight | ||
| Model | Buddy Arc 400i | |
| Weight | 29 kg | |
| Model | Buddy Arc 400i XC | |
| Weight | 31 kg | |
| Welding Output | ||
| Buddy Arc 400i | ||
| Buddy Arc 400i XC | ||
| Extra Information | ||
| 3 m welding cable and return cable kits | ||

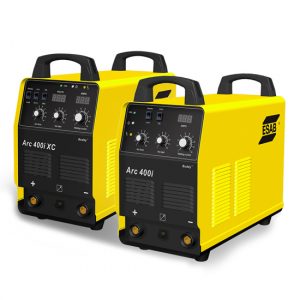

BUDDY ARC 400I & BUDDY ARC 400I XC
The Buddy™ Arc 400i & 400i XC are heavy-duty, fan cooled, IGBT based inverter controlled power sources for MMA / TIG (scratch-start) welding. A wide current range and powerful welding performance make the Buddy™ Arc machines suitable for a wide range of MMA electrode types, such as:- General purpose – Low-hydrogen- Stainless steel- CellulosicThe Buddy™ Arc 400i XC model has controlled welding dynamics that provides even better weld properties for welding pipe root passes, e.g. with cellulosic electrodes.The Buddy™ Arc machines are also capable of performing TIG welding with precise current control. All you need is an optional TIG-torch with a gas valve, a gas regulator and a cylinder of gas. You can weld mild steel or stainless steel material with or without filler material.
