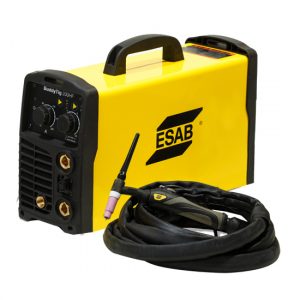

BUDDYTIG 200 HF

Buddy TIG 200HF is an IGBT based compact & light weight inverter welding power source within-built HF unit. Its unique design brings extreme portability for light duty TIG, especially for stainless steel.

Features

Compact & Light weight –for Portability
Flexibility -HF TIG, Lift TIG & MMA
Smooth Weld Finish -Down slope control in 2T & 4T modes
Pre-set gas Pre flow and Post flow –enhanced weld quality
User Friendly Panel –Push buttons and large control knobs
Flexible head Tig torch with current setting knob

Technical Specifications

Dimensions
Height	245 mm
Length	420 mm
Width	145 mm
Fuse Specifications
Fuse Slow – Amps	32 A
Input Voltage
Frequency	50/60 Hz
Phase	1
Voltage	220 ± 10% V
Power Specifications
Protection Class	IP21
TIG
Current Range(A)	10-200 A
MMA/Stick
Current Range(A)	10-180 A
Specifications
Application Classification	S
Standards	IEC 60974-1
Weight
Weight	8.2 kg
Welding Output
Duty Cycle	30%
Output Current	200 A
Output Voltage	18 V
Welding Process	TIG
Duty Cycle	60%
Output Current	155 A
Output Voltage	16.2 V
Welding Process	TIG
Duty Cycle	100%
Output Current	130 A
Output Voltage	15.2 V
Welding Process	TIG
Duty Cycle	30%
Output Current	147 A
Output Voltage	25.9 V
Welding Process	MMA/Stick
Duty Cycle	60%
Output Current	110 A
Output Voltage	24.4 V
Welding Process	MMA/Stick
Duty Cycle	100%
Output Current	90 A
Output Voltage	23.6 V
Welding Process	MMA/Stick
