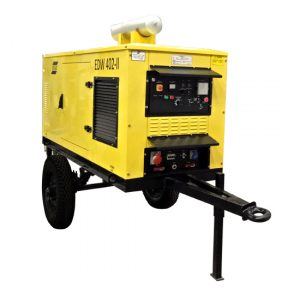

EDW 402-II

EDW 402-II is a CPCB-II compliant heavy duty silenced welding generator for on site usage. The thyristorised rectifier block enables improved current regulation for stable output including very good performance with cellulosic electrodes. Multiple safety features ensures prolonged life with ease of maintenance features like indicators for oil pressure, fuel / lube oil level, engine speed, hour meter etc.

Features

Compact design for improved mobility
Fine controls –Normal, Cellulosic 2.5 / 3.15 modes
Variable Arc force Control
In-built hot start for improved arc initiation
Protection from thermal overloading (welding) & over-current (auxiliary power)

Technical Specifications

Arc Gun Specifications
Cooling	Water
Arc Power Specifications
Auxiliary Power – 1 Outlet
Output Power	2.5 kVA
VDC Out	220 VDC
Auxiliary Power – 3 Phase, 1 Outlet
Output Power	7 kVA
VDC Out	400 VDC
Dimensions
Height	1200 mm
Length	2300 mm
Width	950 mm
Power Specifications
Current Range(A)	40 – 400 A
Max Output (A)	400 A
Open Circuit Voltage	94 V
Weight
Weight	1100 kg
Welding Output
Duty Cycle	100%
Output Current	310 A
Duty Cycle	60%
Output Current	400 A
