| Specifications | |
|---|---|
| Standards | CSA |
| MCableX | 4 x 6 |
| Application Classification | S |
| Power Specifications | |
| Setting Range MMA/DC (V) | 21.2-40 VDC |
| Setting Range MMA/DC (A) | 30-500 A |
| Setting Range MIG/MAG (V) | 15.5-39 VDC |
| Setting Range MIG/MAG (A) | 30-500 A |
| Power Specifications | |
| Protection Class | IP23S |
| Power Factor at Maximum Current | 0.93 |
| Energy Save Mode | 35 Watt |
| Efficiency at Maximum Current | 87% |
| Input Voltage | |
| Voltage | 342-484 V |
| Phase | 3 |
| Frequency | 50/60 Hz |
| Welding Output | |
| Duty Cycle | 60% |
| 100% | |
| Output Current | 500 A |
| 390 A | |
| Dimensions | |
| Length | 712 mm |
| Width | 325 mm |
| Height | 470 mm |
| Wire Feeder Specifications | |
| Max Spool Diameter | 300 mm |
| Wire Feed Speed | 2.2-20.0 m/min |
| Wire Spool Capacity | 18 kg |
| Metal | Mild Steel |
| Wire Diameter | 1.0-1.6 mm |
| Metal | Stainless Steel |
| Wire Diameter | 1.0-1.6 mm |
| Metal | Cored Wire |
| Wire Diameter | 1.0-1.6 mm |
| Weight | |
| Weight | 62 kg |

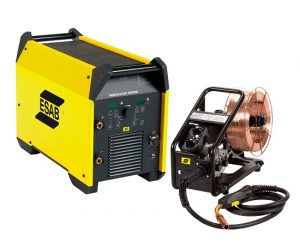

FABRICATOR EM 500I
Fabricator are a heavy duty inverter controlled power sources for MIG/MAG and MMA (Stick) welding. Built to withstand rugged use which makes it a perfect solution for industrial usage. Ideal for heavy industries using solid and flux-cored wires together with Fabricator Feed.
Features
- Wide Input voltage sustenance for stable welding output
- Variable inductance control for better arc performance
- Energy savings with high power factor, high efficiency and low idle power
- IP 23S class for outdoor use
- Insulation Class H for continuous heavy duty usage
- 4 Roll Drive Wire-feeder-smooth and stable wire-feeding
Technical Specifications
Standard Accessories: Power Source, Wire Feeder, 3M Mig Torch, Co2 Regulator & Heater
