| Dimensions | |
|---|---|
| Height | 550 mm |
| Length | 650 mm |
| Width | 320 mm |
| Input Voltage | |
| Frequency | 50 Hz |
| Phase | 3 |
| Voltage | 415 ±15% V |
| Power Specifications | |
| Current Range(A) | 60-300 A |
| Efficiency at Maximum Current | 85% |
| Power Factor at Maximum Current | 0.9 |
| Protection Class | IP 21S |
| Voltage Range (V) | 14-32 V |
| Weight | |
| Weight | 45 kg |
| Welding Output | |
| Duty Cycle | 60% |
| Output Current | 300 A |
| Duty Cycle | 100% |
| Output Current | 240 A |
| Wire Feeder Specifications | |
| Wire Diameter | 0.8 – 1.2 mm |
| Wire Feed Speed | 2.5 – 30 m/min |

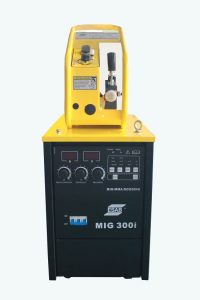

MIG 300I
MIG 300i is an IGBT based inverter welding power source fitted with a powerful servo motor designed for very high productivity welds.
Features
- High duty cycle design for continuous welding
- High wire-feed speed (up to 30 m/min) for high productivity
- Wide mains voltage tolerance 400V +/-15%
- Wide operating range 60A -300A
Technical Specifications
Standard Accessories: Power Source, Wire Feeder, 3M Mig Torch, Co2 Regulator & Heater
