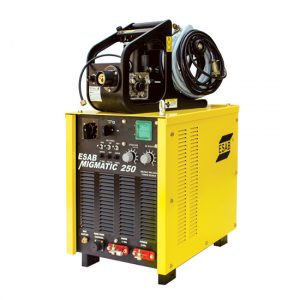

MIGMATIC 250

Migmatic 250 is designed to allow high speed welding on thin sheets. The strong wire-feeder has a rugged design to withstand usage in challenging industrial environments.

Features

User Friendly Controls – Digital Ammeter and Voltmeter.
Compact and Light Weight – Improved Portability
User friendly pre-set controls – Creep Start, Pre-flow, Post-flow.
Protection – Thermal over load protection.

Technical Specifications

Dimensions
Height	580 mm
Length	620 mm
Width	390 mm
Input Voltage
Frequency	50 Hz
Phase	3
Voltage	415 ±10% V
Power Specifications
Current Range(A)	40-250 A
Protection Class	H
Voltage Range (V)	16-32 V
Voltage Steps Maximum	10
Weight
Weight	78 kg
Welding Output
Duty Cycle	1
Output Current	190 A
Duty Cycle	0.6
Output Current	250 A
Wire Feeder Specifications
Wire Diameter	0.8 – 1.2 mm
Wire Feed Speed	1.5 – 22 m/min

Standard Accessories: Power Source, Wire Feeder, 3M Mig Torch, Co2 Regulator & Heater
