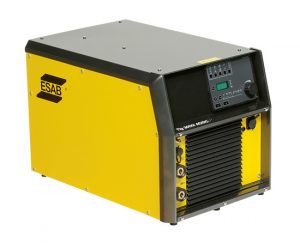

ORIGO TIG 3000I AC/DC, TA24 AC/DC

In both DC and AC mode this TIG welding machine will give an excellent start and stable arc. All types of material and thickness can be welded with the highest quality.

Features

Designed for quality TIG-welding in all types of material
QWave™ – enables AC welding with high arc stabliity and low noise
AC frequency and balance control optimizes weld pool
DC pulsed TIG welding gives easy control of heat input
ESAB 2-program function. Possibility to pre-program and change program during welding
Easy to use. All parameters presented in an easily comprehensible way
MMA welding: Hot start, arc force and polarity switch

Technical Specifications

Dimensions
Model	Origo Tig 3000i AC/DC
Height	423 mm
Length	652 mm
Width	412 mm
Input Voltage
Model	Origo Tig 3000i AC/DC
Frequency	50/60 Hz
Voltage	400 V
Power Specifications
Model	Origo Tig 3000i AC/DC
AC Balance	50-98 %
Open Circuit Voltage	54-64 VDC
Protection Class	IP 23C
Specifications
Gas post flow	0 – 25 sec
Gas pre flow	0 – 5 sec
MCableX	4×4
Slope Down	0 – 10 sec
Slope Up	0 – 10 sec
Weight
Model	Origo Tig 3000i AC/DC
Weight	42 kg
Welding Output
Model	Origo Tig 3000i AC/DC
Duty Cycle	100%
	100%
	35%
Output Current	200 A
	240 A
	300 A
