| Dimensions | |
|---|---|
| Model | Origo Tig 4300iw AC/DC |
| Height | 776 mm |
| Length | 625 mm |
| Width | 394 mm |
| Input Voltage | |
| Model | Origo Tig 4300iw AC/DC |
| Phase | 3 |
| Voltage | 400 V |
| Power Specifications | |
| AC Balance | 50-98 % |
| Power Factor at Maximum Current | 0.79 |
| Protection Class | IP 23 |
| Specifications | |
| Gas post flow | 0 – 25 sec |
| Gas pre flow | 0 – 10 sec |
| MCableX | 4×4 |
| Slope Down | 0 – 10 sec |
| Slope Up | 0 – 10 sec |
| Weight | |
| Weight | 95 kg |
| Welding Output | |
| Model | Origo Tig 4300iw AC/DC |
| Duty Cycle | 100% |
| 40% | |
| 60% | |
| Output Current | 315 A |
| 400 A | |
| 430 A | |
| Output Voltage | 22.6 VAC |
| 26 VAC | |
| 27.2 VAC | |

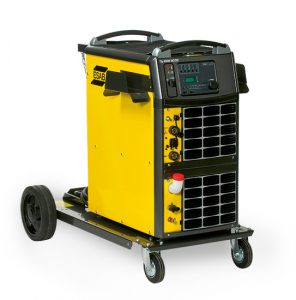

ORIGO TIG 4300IW AC/DC, TA24 AC/DC
For demanding applications in TIG welding.
Features
- Designed for quality TIG-welding in all types of material
- QWave™ – enables AC welding with high arc stability and low noise
- AC Frequency and Balance control – Optimises weld pool
- DC Pulsed TIG welding- easy control of heat input and the weld pool
- ESAB LogicPump – ELP, automatic start of the cooling unit by connection of a liquid-cooled torch• Energy save mode – fan and pump on demand
- 2-program function – possibility to pre-program and change program during actual welding
- Easy to use – All welding parameters presented in an easy to understand panel
- MMA welding in AC and DC mode – Hot start, Arc force, and polarity switch (DC)
