| Dimensions | |
|---|---|
| Height | 1070 mm |
| Length | 825 mm |
| Width | 695 mm |
| Input Voltage | |
| Frequency | 50 Hz |
| Phase | 3 |
| Voltage | 415 ±10% V |
| Power Specifications | |
| Current Range(A) | 10 – 400 A |
| Efficiency at Maximum Current | 75% |
| Open Circuit Voltage | 90 V |
| Protection Class | H |
| Weight | |
| Weight | 195 kg |

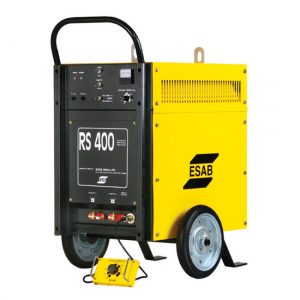

RS 400
RS 400 is a thyristorised welding power source designed to withstand tough working conditions with excellent welding output characteristics makes this preferred choice for outdoor and onsite usage.
Features
- Easy arc striking and ripple free output reduce rework
- Suitable for use with Long Lead and cellulosic electrode
- Heavy duty performance with insulation class H
- Heavy duty under carriage with large wheel and handle – ease of machine movement
