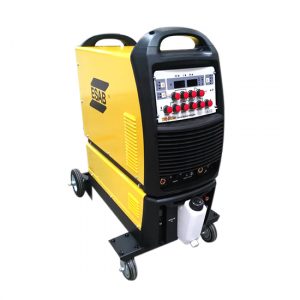

TIG 401IW

TIG 401iw is an IGBT based inverter controlled power source with in-built high efficiency cooling unit designed for heavy duty applications of high frequency (HF) TIG welding & MMA welding. The user-friendly interfaces for torch and water cooling unit connections minimises the risk of leakages.

Features

Digital Ammeter and Voltmeter
Individual knobs for parameter setting
In-built trolley with cooling unit and cylinder mount
High efficiency Cooling Unit with flow guard

Technical Specifications

Dimensions
Height	913 mm
Length	977 mm
Width	420 mm
Input Voltage
Frequency	50 Hz
Phase	3
Voltage	415 ±10% V
Power Specifications
Current Range(A)	20-400 A
Open Circuit Voltage	65 V
Power Factor at Maximum Current	0.93
Weight
Weight	65 kg
Welding Output
Duty Cycle	60%
Output Current	400 A
Duty Cycle	100%
Output Current	310 A
