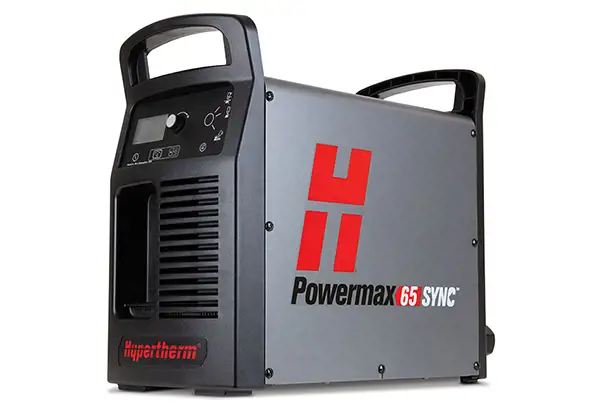

Powermax65 SYNC plasma cutter
The Powermax65 SYNC® is a next-generation professional grade air plasma cutter that dramatically simplifies system operation for gouging and recommended cutting up to 20 mm (3/4″). Featuring automated system process set-up via advanced RFID-enabled SmartSYNC® torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax65 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.
Features
- Maximum productivity
- Easy-to-use for cutting and gouging
- Rugged and reliable
- Minimize operation costs
Technical Specifications
Cut capacity
| Capacity | Thickness | Cut speed |
|---|---|---|
| Recommended | 20 mm (3/4″) | 500 mm/min (20 ipm) |
| 25 mm (1″) | 250 mm/min (10 ipm) | |
| Severance (hand cutting) | 32 mm (1-1/4″) | 125 mm/min (5 ipm) |
| Pierce* | 16 mm (5/8″) |
*Pierce rating for handheld cutting, or mechanized cutting with programmable torch height control.
Maximum removal gouging
| Capacity | Metal removal rate | Groove profile |
|---|---|---|
| Typical gouge | 4,0 kg (8.8 lbs.) per hour | 2,9 mm D x 6,4 mm W (0.11″ D x 0.25″ W) |
General specifications
|
Input voltages |
200–480 V, 1-PH, 50/60 Hz 200–600 V, 3-PH, 50/60 Hz |
|---|---|
|
Kilowatt output |
9 kW |
|
Input current |
200/208/240/480 V, 1-PH 52/50/44/22 A @ 9 kW 200/208/240/480/600 V, 3-PH 32/31/27/13/13 A @ 9 kW |
|
Output current |
20–65 A |
|
Rated output voltage |
139 VDC |
|
Duty cycle @ 104° F |
50% @ 65 A, 230–600 V, 1/3-PH 40% @ 65 A, 200–208 V, 1/3-PH 100% @ 46 A, 230–600 V, 1/3-PH |
|
Open circuit voltage (OCV) |
295 VDC |
|
Dimensions with handles |
483 mm D; 233 mm W; 430 mm H (19″ D; 9.2″ W; 17″ H) |
|
Weight w/7.6 m (25′) torch |
29 kg (61 lbs.) |
|
Gas supply |
Clean, dry, oil-free air or nitrogen |
|
Optimum inlet gas pressure |
7.6–8.3 bar (110–120 psi) |
|
Minimum inlet gas pressure |
5.2 bar (75 psi) |
|
Recommended inlet gas flow rate |
Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi) Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi) |
|
Input power cable length |
3 m (10′) |
|
Power supply type |
Inverter – IGBT |
|
Engine drive requirement |
15 kW for full 65 A output |
|
Certifications |
CSA-certified for use in the Americas and Asia, except China |
|
Warranty |
Power supplies have a 3-year warranty and torches a 1-year warranty |
